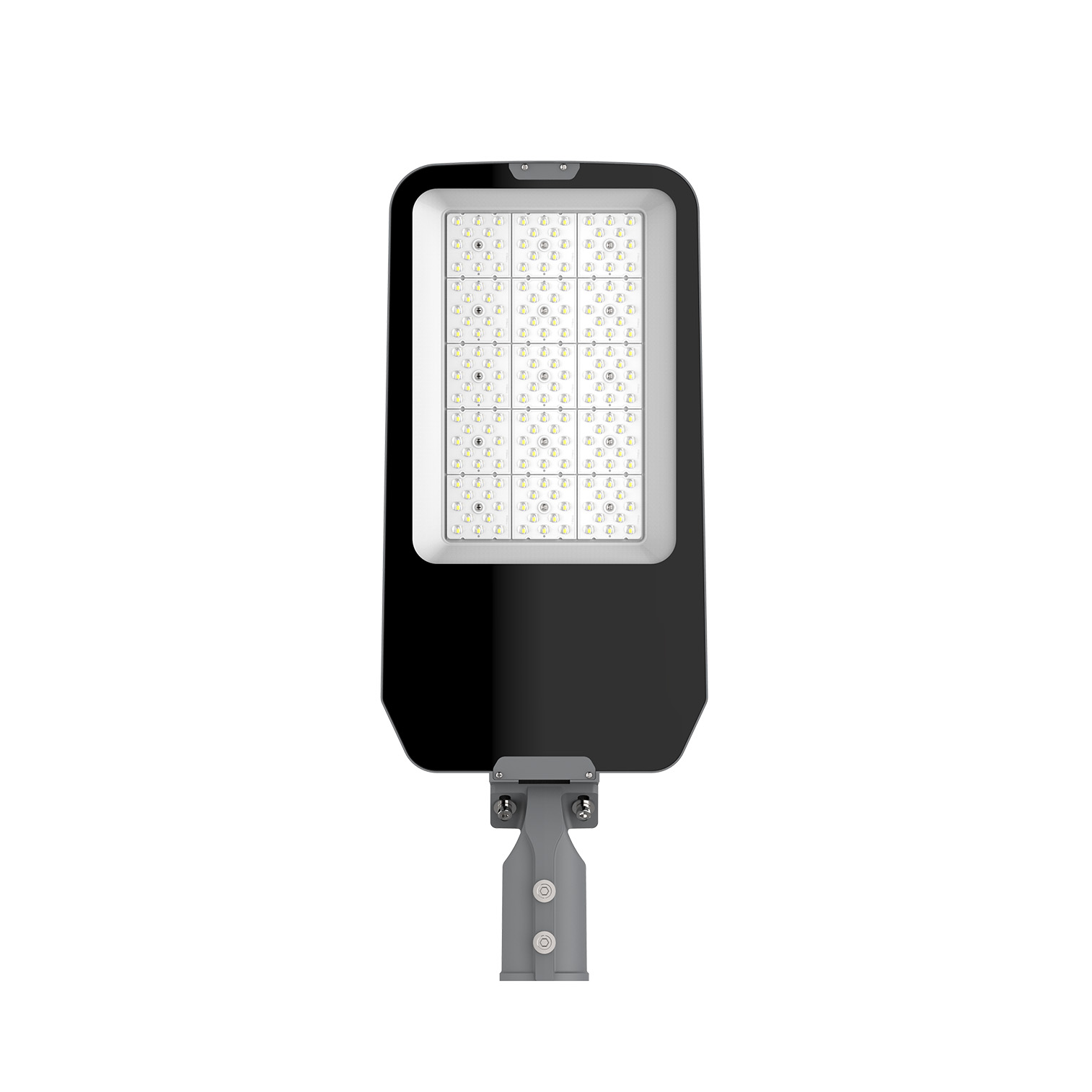

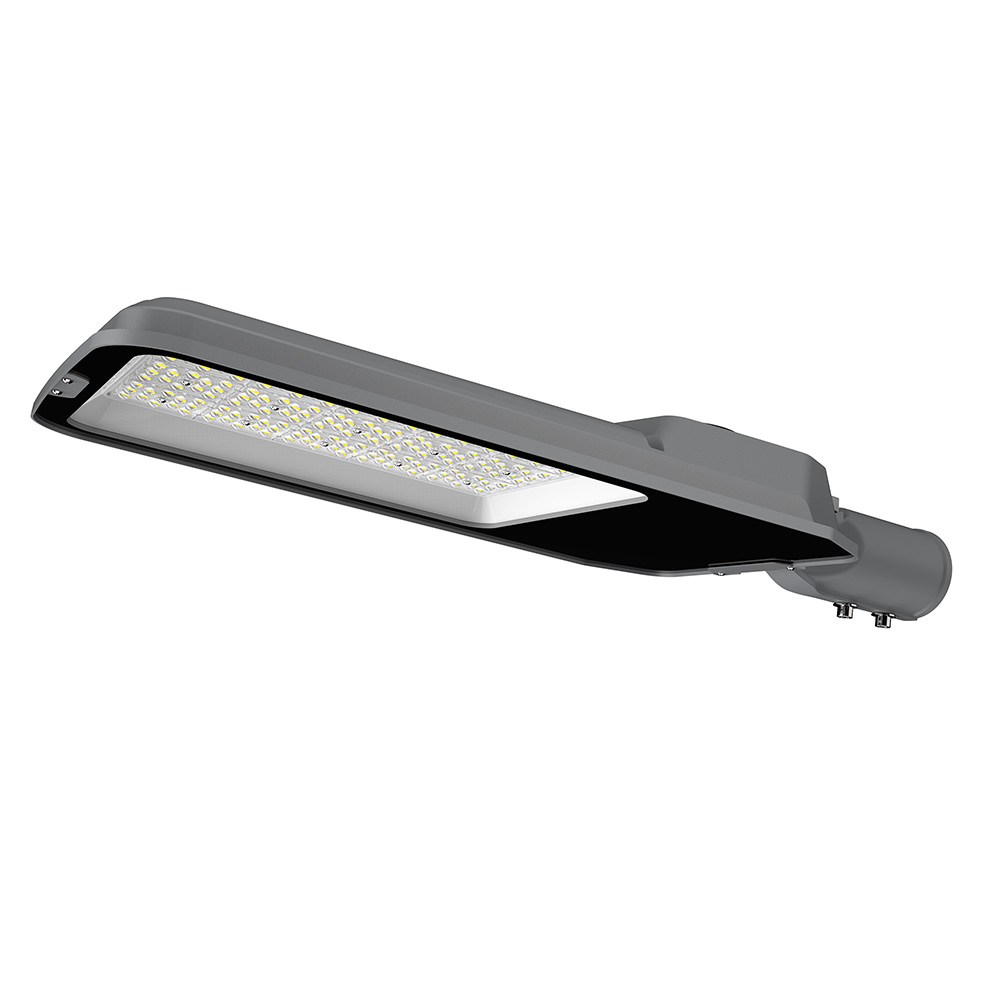

Camel-100W
Brand: PTS-LED
Parameter: 100-120W
Material quality: Aluminum Suit: Street Road/Country Road Down:
Camel Series Street Light for 3-5 Years Warranty
| Model No. | Power | Efficiency | Total Lumen | Dimension（LWH） | Beam Angle | WaterProof | IK Impact | Input Voltage | Warranty | MOQ |
| CMS-60 | 60W | 140-150lm/W | 8400-9000lm | 530*205*60mm | ODM | IP66 | IK08 | 90-277V ac | 3-5 years | 100pcs |
| CMS-100 | 100W | 140-150lm/W | 14000-15000lm | 590*240*60mm | ||||||
| CMS-180 | 180W | 140-150lm/W | 25200-27000lm | 640*255*60mm |
Camel design Aim and Advantage:
1. Camel Series is based on Middle quality level design.
LED Driver is designed by PTS-LED. So we could control the lifespan.
2. Based on 40℃ space temperature, Body back temperature is <75℃。This is temperature is higher than top quality.
3. In Order to save cost, body thikness is 1.5mm level.
But price is really surprised based on 3-5 year warranty.
4. Luminous efficiency is lower than Top quality. It is 140-150lm/W. But this efficiency is also excellent in the market products.
Our 140-150lm/W is finished street light testing report.
5. Beam angle could be ODE and based on your requests.
We have IES files. If you need, contact us.
